WARNING: Cancer and Reproductive Harm - Volume Pricing
| Thickness | Width | Weight per Roll | Plys of Fabric | Weight per Linear ft | 5-24 Feet | 25-99 Feet | 100-499 Feet | 500+ Feet |
| 1/16″ or 1.6mm | 10″ or 25.4 cm | 21 lbs | 1 ply | .4 lbs | $2.30 | $1.67 | $1.46 | $1.02 |
| 1/16″ or 1.6mm | 36″ or 91.4 cm | 73 lbs | 1 ply | 1.5 lbs | $6.90 | $5.02 | $4.39 | $3.07 |
| 1/8″ or 3.2mm | 36″ or 91.4 cm | 147 lbs | 2 ply | 2.9 lbs | $12.90 | $9.38 | $8.21 | $5.74 |
| 3/16″ or 4.8mm | 36″ or 91.4 cm | 220 lbs | 3 ply | 4.4 lbs | $18.90 | $13.74 | $12.03 | $8.40 |
| 1/4″ or 6.4mm | 36″ or 91.4 cm | 293 lbs | 4 ply | 5.9 lbs | $24.67 | $17.94 | $15.70 | $10.97 |
Product Description

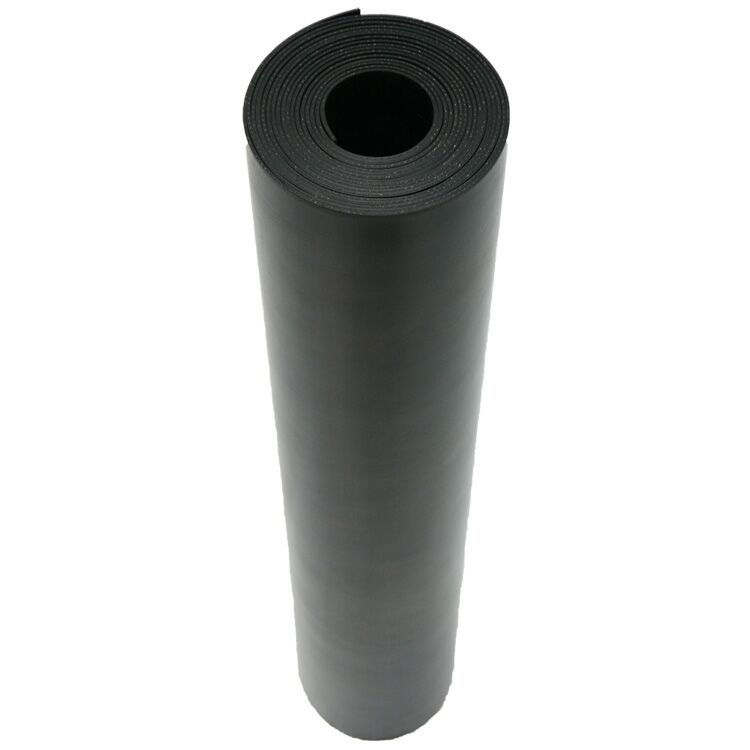

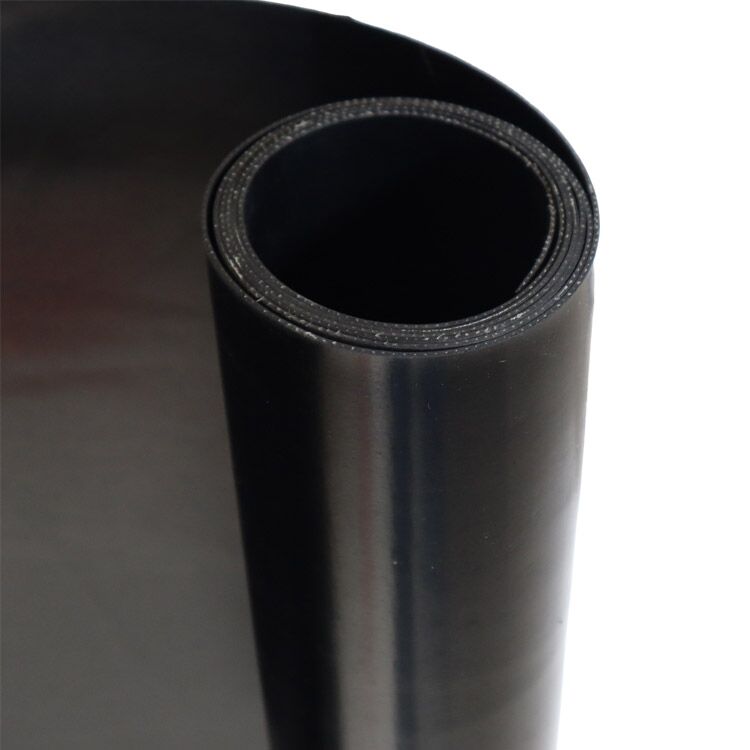

“Cloth-Inserted Rubber Sheet” is made with durable styrene butadiene rubber, also known as SBR rubber. Styrene butadiene rubber is an affordable elastomer with good abrasion resistant qualities. The secret to the heavy-duty qualities of this rubber sheet is the cloth inserted into the material. Per 1/16” inch of thickness you will find on ply of fabric, hence the 1/16” version is 1-ply, the 1/8” thick is 2-ply and so forth. The addition of the fabric reinforces the rubber to prevent stretching and ultimately adds tear strength for fastening applications.
Suitable For Mechanical Fastening: Not all rubber sheets are suitable for every task. Sheet rubber that is not reinforced will have lower tear strength, thus not recommended for use as a flap or a rubber curtain. For example, pulling the rubber sheet tight and puncturing the material with a bolt may result in troublesome tearing near the bolted area. Fabric reinforced rubber will provide the sturdy construction needed for such tasks. With the inserted cloth, the reinforced rubber becomes mechanically stable for a more secure installation. With fabric reinforced rubber the life of a mechanical installation is enhanced.
Abrasion Resistant SBR: Whether you are using this as a flap on door, rubber curtain on an airplane hanger, or have a personal project, you can be sure that SBR rubber offers excellent abrasion resistance. For this reason, fabric reinforced rubber made with SBR is a popular choice for gritty applications like pavement maintenance and industrial liners. The lasting quality of durable SBR cloth-inserted rubber makes it a cost-effective option as well. Unlike Neoprene or EPDM sheet rubber products, this general-purpose reinforced rubber will fit into most project budgets.
Other Benefits:
- This sheet rubber product is available in 36 and 48 inch widths.
- Per 1/16″ thickness, this reinforced rubber offers one ply of fabric.
- Can be purchased in lengths as short as 5 feet and in custom lengths up to the rolls maximum length.
- Fabric reinforced rubber secures mechanical fastening at an affordable price point.
Company Reviews
Product Specifications
| Description: | Cloth inserted sheet materials are designed to add stability when mechanical fastening is necessary. Cloth Inserted SBR is stocked. This construction includes one ply of cotton fabric for each 1/16” thickness. |
| Compound: | Standard sheet is a made of SBR (Styrene Butadiene Rubber) with a polyester inserted fabric |
| Color: | Black |
| Weight: | Approximate weight per square foot: 1/8″ weighs 1 lbs. |
| Durometer: | 70 Shore A, +/- 5 |
| Temperature Range: | -10 F to 190 F |
| Minimum Tensile: | 500 PSI or 4 MPA |
| Finish: | Smooth |
| Minimum Elongation: | 200% |
| Gauges: | 1/16″ 1ply, 1/8″ 2plies, 3/16″ 3plies, 1/4″ 3plies. |
| Widths: | 10″, 36″ and 48″ (custom widths and gauges are available upon request) |
| Roll Lenght: | 50′ |
| Applications: | For use where mechanical fastening is necessary. |
| PSA: | Pressure sensitive adhesive can be applied to this product upon request. |
| Flexibility: | This hard durometer (65-75) sheet rubber offers limited flexibility and low elasticity. |
| Custom Cuts | In addition to hand fabrication, this product can be fabricated using laser, die, and water-jet cut. Please submit your drawings for a price quote. |
| Availability: | CI SBR is generally in stock. |
