WARNING: Cancer and Reproductive Harm - Volume Pricing
| Thickness | Width | Length | Weight per sheet | 1-4 Sheets | 5-24 Sheets | 25-49 Sheets | 50+ Sheets |
| 1/8″ or 3.2mm | 39in or 99cm | 78in or 198.1cm | 5.0 lbs | $45.91 | $30.61 | $28.31 | $24.49 |
| 1/4″ or 6.4mm | 39in or 99cm | 78in or 198.1cm | 10.0 lbs | $91.84 | $61.23 | $56.64 | $48.98 |
| 3/8″ or 9.5mm | 39in or 99cm | 78in or 198.1cm | 14.5 lbs | $136.27 | $90.84 | $84.03 | $72.68 |
| 1/2″ or 12.7mm | 39in or 99cm | 78in or 198.1cm | 20.0 lbs | $182.27 | $121.51 | $112.40 | $97.21 |
| 3/4″ or 19.1mm | 39in or 99cm | 78in or 198.1cm | 30.0 lbs | $274.09 | $182.73 | $169.02 | $146.18 |
| 1″ or 25.4mm | 39in or 99cm | 78in or 198.1cm | 40.0 lbs | $364.70 | $243.13 | $224.90 | $194.51 |

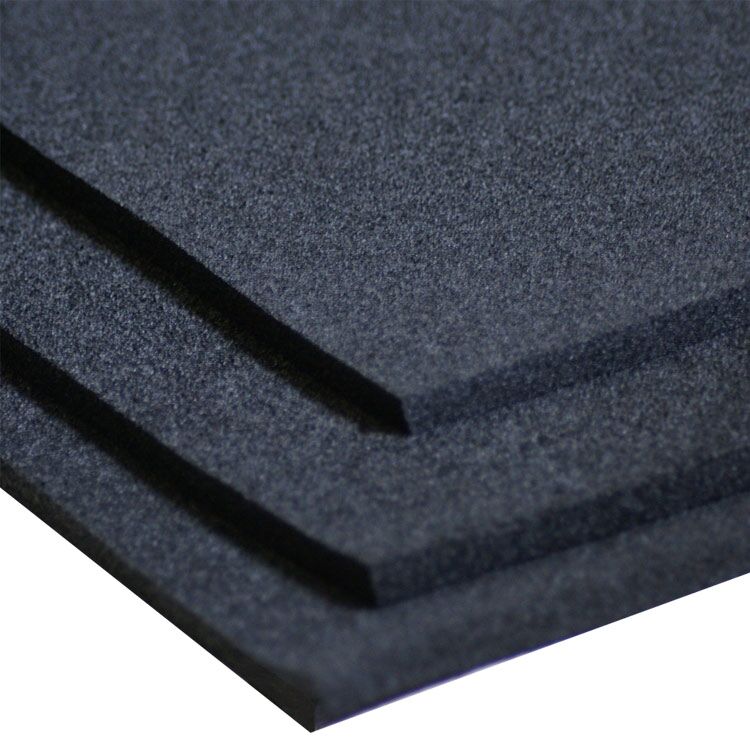

If there is a need for a soft sponge pad to be used in the outdoors for prolonged periods of time, then this EPDM sponge sheet is the best option for the job. The rubber compound known as EPDM was specifically developed in the 1960s to serve as a rubber that could withstand long-term exposure to UV and ozone. These sheets are an open cell rubber variation that is ideal for use as seals, gaskets, and protective padding. These sheets are extremely soft and compressible, allowing for greater flexibility and recovery after compression.
Made for the Outdoors: Open cell EPDM is the perfect foam sheet for any application where the presence of sunlight and other elements is present. UV and ozone have a tendency to harm certain types of materials after a while, but that is not the case with EPDM foam. It is designed to have a longer lifespan when exposed to the elements.
Excellent Compressibility: This EPDM rubber foam is among the most compressible products currently available. The cellular composition of this open cell rubber material is the secret behind its ability to compress. The cell structure is composed of tiny air pockets that have gaps in between them. When force is applied to the surface of the EPDM sponge, these air pockets will close in on themselves. The source of the pressure will also not face any resistance due to the soft nature of open cell sponge. The EPDM foam sheet will maintain its compressed form as long as the object applying the pressure remains.
Fast Recovery: The open cell EPDM has the ability to revert back to its original shape after compression. When the source of pressure is removed from the open cell rubber sheet’s surface, the air pockets within its cellular composition will revert back to their original shape. This helps the EPDM rubber foam maintain a working lifespan suitable to long-term use in applications that require constant compression.
More Benefits:
- Operating temperature range from -40° F to 160° F
- Easy to roll up for transportation and storage purposes
- Pressure sensitive adhesive backing can be applied upon request
- The cellular texture of the open cell rubber is visible on the surface
Company Reviews
Product Specifications
| Description: | General purpose open cell sponge made from EPDM rubber available in sheet form. Ideal for outdoor or indoor use in shock absorption and gasket related applications. |
| Compound: | EPDM rubber (ethylene propylene diene monomer rubber) |
| Color: | Black |
| Sheet Size: | 39″ x 78” (1000*2000mm), Tolerances +20mm or +0.75” |
| Gauges: | 1/8”, 1/4″, 3/8”, 1/2″, ¾”, 1” |
| Temperature Range: | -40 F to 160 F |
| Finish: | Textured and the cellular feature visible on the surface |
| Elongation: | 1.03Mpa (Test method ASTM D412-06a) |
| Tensile Elongation: | 216% (Test method ASTM D412-06a) |
| Density Average: | 190kgs/m3+/-20kgs/m3 |
| Elongation: | 168% – GB/T 6344-1996 |
| Compression Strength: | 1.56 kPA per ASTM D695-15 |
| Tensile Strength: | 0.10 MPA – JIS K6767:1999 |
| Density: | 0.92 Grams/CM2 – GB/T 6343-1995 |
| Custom Cuts: | In addition to hand fabrication, this product can be fabricated using laser, die, and water-jet cut. Please submit your drawings for a price quote. |
| Availability: | This product is generally stocked and can ship within 24 hours. |
