| Thickness | Width | Weight per Roll | Weight per Linear ft | 5-24 Feet | 25-99 Feet | 100-499 Feet | 500+ Feet |
| 1/32″ or 0.8mm | 36″ or 91.4 cm | 40 lbs | .8 lbs | $10.68 | $7.56 | $6.85 | $5.34 |
| 1/16″ or 1.6mm | 36″ or 91.4 cm | 80 lbs | 1.6 lbs | $17.08 | $12.10 | $10.96 | $8.54 |
| 1/8″ or 3.2mm | 36″ or 91.4 cm | 160 lbs | 3.2 lbs | $29.58 | $20.96 | $18.98 | $14.79 |
| 1/4″ or 6.4mm | 36″ or 91.4 cm | 320 lbs | 6.4 lbs | $59.17 | $41.91 | $37.97 | $29.58 |
Product Description

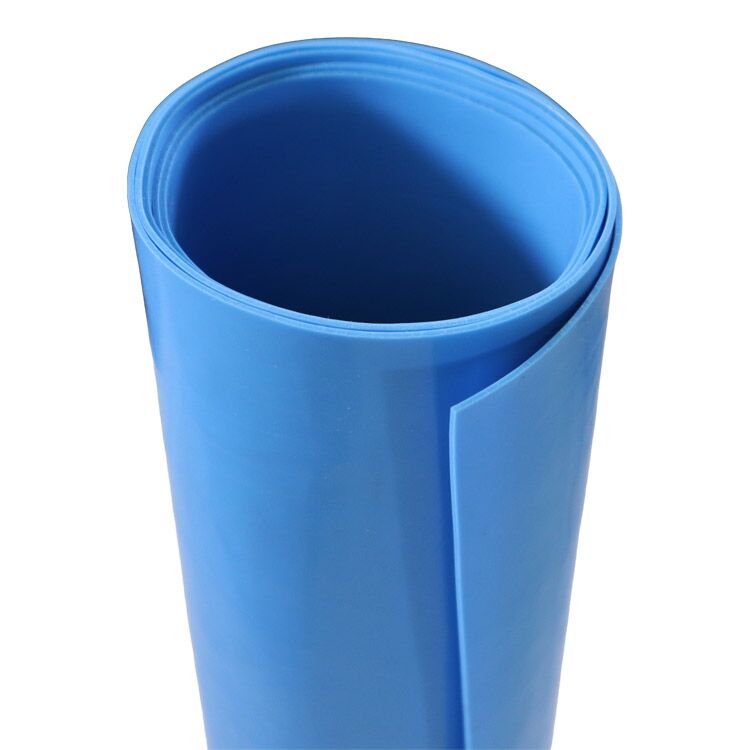

If you have been looking for commercial grade silicone in a color other than the usual translucent or red, then you can stop your search. This silicone sheet material is gifted with a blue physical appearance that will ensure that it will stand out and be easily recognizable. Beyond it’s unique physical appearance, this blue colored silicone sheet is very well suited for use in commercial applications that involve extreme high and low temperature conditions. With a durometer rating of 50 Shore A, this blue silicone elastomer is one of the more flexible silicone materials we have in our lineup.
Temperature Resistant Rubber: This commercial grade silicone rubber would not be a true silicone if it could not endure extreme temperature conditions. On the low end of the spectrum, this silicone rubber can handle temperatures as cold as -103 F. On the opposite end of the temperature scale, it can work comfortably in conditions as hot as 450 F. When exposed to these temperature conditions, this silicone sheet material will not degrade or fall apart. Instead, just as with any other silicone rubber, it will continue to function in the capacity you intend.
Low Durometer Silicone: With a durometer rating of 50 Shore A, this silicone elastomer favors physical flexibility over durability. It is meant to be used in applications that call for more pliability from the rubber parts used in them. Thanks to the low durometer rating, this commercial grade silicone is easier to cut, manipulate, and fabricate than those of a higher durometer.
Chemical Resistance: In addition to being able to resist extreme temperature conditions, this silicone sheet material has a moderate degree of chemical resistance. This feature comes in handy in case this elastomer is being used in a laboratory setting or other areas with the presence of chemicals. Some examples of the chemicals that this low durometer silicone can endure are solutions of ammonia gas, acetic acid, vinegar, sodium sulfate, and more.
More Benefits:
- Excellent fungus resistance
- Can be exposed to UV and ozone
- Commercial grade silicone sheet with a smooth texture
- Custom fabrication into seals and gaskets available upon request
- Blue colored silicone is not a common color sheet good and can serve to identify parts based on their material makeup
Company Reviews
Product Specifications
| Description: | Commercial grade silicone sheeting is used in applications where physical properties are not critical but extreme temperature resistance is necessary. This sheeting makes excellent gasket material, offers both UV and ozone resistance. |
| Compound: | 100% Silicone Sheet |
| Color: | Blue |
| Durometer: | 50 Shore A, +/-5 |
| Temperature Range: | -103 F to 450 F |
| Minimum Tensile: | 870 PSI or 6 MPA |
| Finish: | Smooth |
| Minimum Elongation: | 300% |
| Gauges: | 1/32″, 1/16″, 1/8″, 1/4″ |
| Widths: | 36 inches |
| Roll Length: | 25′ or 50′ depending on thickness |
| Chemical Resistance: | Excellent resistance to Fungus, Acetic Acid, Ammonia Gas (hot and cold), Corn Oil, Fish Oil, Lime Sulfur, Methyl Ether, Ozone, Sodium Sulfate, Tartaric Acid, Vinegar, and many more. For Silicone’s compatibility with your specific medium please consult a Rubber-Cal representative. |
| Application: | High-Temperature Gasketing, Laboratory Equipment, Cost-Conscious Materials, Commercial Chemical Resistance. |
| Flexibility: | This elastomer is available in a wide range of durometers (45-55). |
| Custom Cuts: | In addition to hand fabrication, this product can be fabricated using laser, die, and water-jet cutting. Please submit your drawings for a price quote. |
