WARNING: Cancer and Reproductive Harm - Volume Pricing
| Thickness | Width | Weight per Roll | Weight per Linear ft | 5-24 Feet | 25-99 Feet | 100-499 Feet | 500+ Feet |
| 1/32″ or 0.8mm | 36″ or 91.4 cm | 28 lbs | .8 lbs | $10.32 | $7.31 | $6.62 | $5.16 |
| 1/16″ or 1.6mm | 36″ or 91.4 cm | 54 lbs | 1.6 lbs | $16.51 | $11.70 | $10.59 | $8.26 |
| 1/8″ or 3.2mm | 36″ or 91.4 cm | 108 lbs | 3.2 lbs | $28.44 | $20.14 | $18.25 | $14.22 |
| 1/4″ or 6.4mm | 36″ or 91.4 cm | 215 lbs | 6.4 lbs | $56.88 | $40.29 | $36.50 | $28.44 |

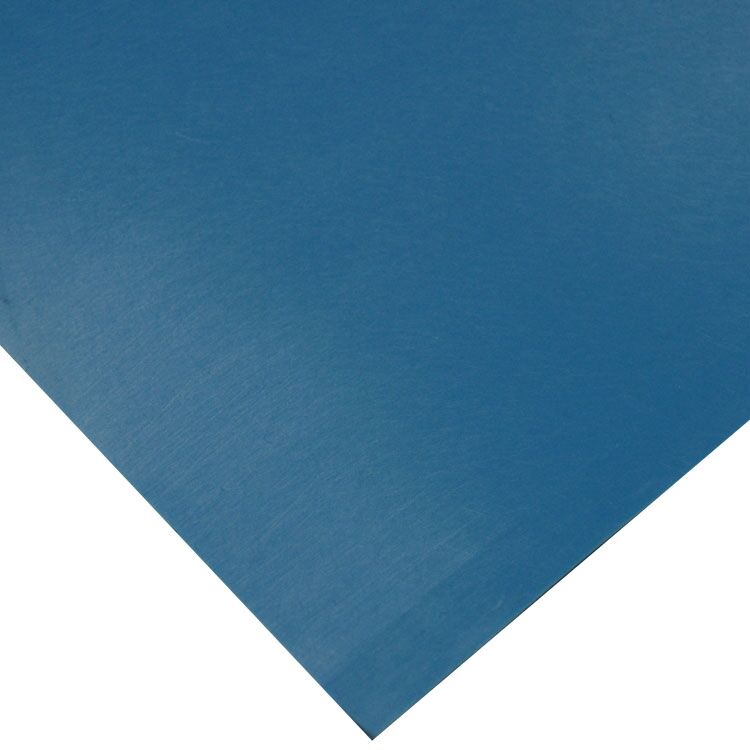

Product Description
These commercial grade blue silicone sheets are unique among their peers due to the fact that they come in a blue color. With a durometer rating of 60 Shore A, this commercial silicone material offers a good degree of resistance against physical indentation, although it has more limited flexibility when compared to the 50 or 40 shore A silicone. People prize silicone for being a temperature resistant rubber, and these silicone sheets are no different. You can use this sheet rubber as seals and gaskets for commercial grade applications that involve extremely hot or cold temperature conditions.
60A Silicone Shore Hardness: Thanks to a 60A durometer rating, this commercial silicone is durable enough to be used in applications that may involve physical abrasions. A rating of 60A gives the material a better ability to resist physical indentation on its body. This helps to ensure that the blue silicone sheets last for longer periods of time. This material is meant to favor physical durability over flexibility, so use it in application that require some more rigidity from your rubber parts.
Temperature Resistant Rubber: In most cases, extreme temperature conditions can damage a rubber. That is not the case with silicone rubber. This high quality commercial silicone rubber can operate in temperatures that range from -103 F to 450 F. Silicone is regularly used in a wide variety of applications that involve either very cold or very hot temperatures. These blue silicone sheets will help you identify parts based on their chemical compound. Since most other rubber sheets (e.g. neoprene, epdm) are not blue, your staff can easily pick out material based on color.
Custom Fabrication: This commercial grade sheet rubber comes in a standard roll size of 36Ó wide by 50ft long. It is stocked in gauges that are commonly requested by customers: 1/32″, 1/16″, 1/8″, and 1/4″. However, if you require a shorter length, we can provide you with a roll that is 36″ wide by any length of up to 50 continuous feet. If you require custom parts made out of the silicone sheets, then fabrication options are available in the form of hand, die, laser, and water-jet cutting. Be sure to ask a representative for more information about custom fabrication options.
More Benefits:
- Color variation comes from regular blue to light blue
- Also available in a lower silicone shore hardness of 50A
- Can be exposed to UV and ozone due to resistance factors
- Features a great level of resistance to fungus and certain chemicals
- For fabricating these silicone sheets into custom gaskets, you can provide drawings for a price quote
Company Reviews
Product Specifications
| Description: | Commercial grade silicone sheeting is used in applications where physical properties are not critical but extreme temperature resistance is necessary. This sheeting makes excellent gasket material, offers both UV and ozone resistance. |
| Compound: | 100% Silicone Sheet |
| Color: | Blue |
| Durometer: | 60 Shore A, +/-5 |
| Temperature Range: | -103 F to 450 F |
| Minimum Tensile: | 870 PSI or 6 MPA |
| Finish: | Smooth |
| Minimum Elongation: | 300% |
| Gauges: | 1/32″, 1/16″, 1/8″ and 1/4″ |
| Widths: | 36 inches |
| Roll Length: | 25′ or 50′ depending on thickness |
| Chemical Resistance: | Excellent resistance to Fungus, Acetic Acid, Ammonia Gas (hot and cold), Corn Oil, Fish Oil, Lime Sulfur, Methyl Ether, Ozone, Sodium Sulfate, Tartaric Acid, Vinegar, and many more. For Silicone’s compatibility with your specific medium please consult a Rubber-Cal representative. |
| Application: | High-Temperature Gasketing, Laboratory Equipment, Cost-Conscious Materials, Commercial Chemical Resistance. |
| Flexibility: | This elastomer is available in a wide range of durometers (35-45). |
| Custom Cuts: | In addition to hand fabrication, this product can be fabricated using laser, die, and water-jet cutting. Please submit your drawings for a price quote. |
