WARNING: Cancer and Reproductive Harm - Volume Pricing
| Thickness | Width | Weight per Roll | Weight per Linear ft | 5-24 Feet | 25-99 Feet | 100-499 Feet | 500+ Feet |
| 1/32″ or 0.8mm | 36″ or 91.4 cm | 40 lbs | .8 lbs | $10.68 | $7.56 | $6.85 | $5.34 |
| 1/16″ or 1.6mm | 36″ or 91.4 cm | 80 lbs | 1.6 lbs | $17.08 | $12.10 | $10.96 | $8.54 |
| 3/32″ or 2.4mm | 36″ or 91.4 cm | 120 lbs | 2.4 lbs | $23.05 | $16.33 | $14.79 | $11.52 |
| 1/8″ or 3.2mm | 36″ or 91.4 cm | 160 lbs | 3.2 lbs | $29.58 | $20.96 | $18.98 | $14.79 |
| 3/16″ or 4.8mm | 36″ or 91.4 cm | 240 lbs | 4.8 lbs | $44.38 | $31.43 | $28.48 | $22.19 |
| 1/4″ or 6.4mm | 36″ or 91.4 cm | 320 lbs | 6.4 lbs | $59.17 | $41.91 | $37.97 | $29.58 |
| 3/8″ or 9.5mm | 36″ or 91.4 cm | 240 lbs | 9.6 lbs | $88.75 | $62.87 | $56.95 | $44.38 |
| 1/2″ or 12.7mm | 36″ or 91.4 cm | 320 lbs | 12.8 lbs | $121.96 | $86.39 | $78.26 | $60.98 |
| 5/8″ or 15.8mm | 36″ or 91.4 cm | 400 lbs | 16 lbs | $152.50 | $108.02 | $97.85 | $76.25 |
| 3/4″ or 19.1mm | 36″ or 91.4 cm | 480 lbs | 19.2 lbs | $182.94 | $129.58 | $117.39 | $91.47 |
Product Description

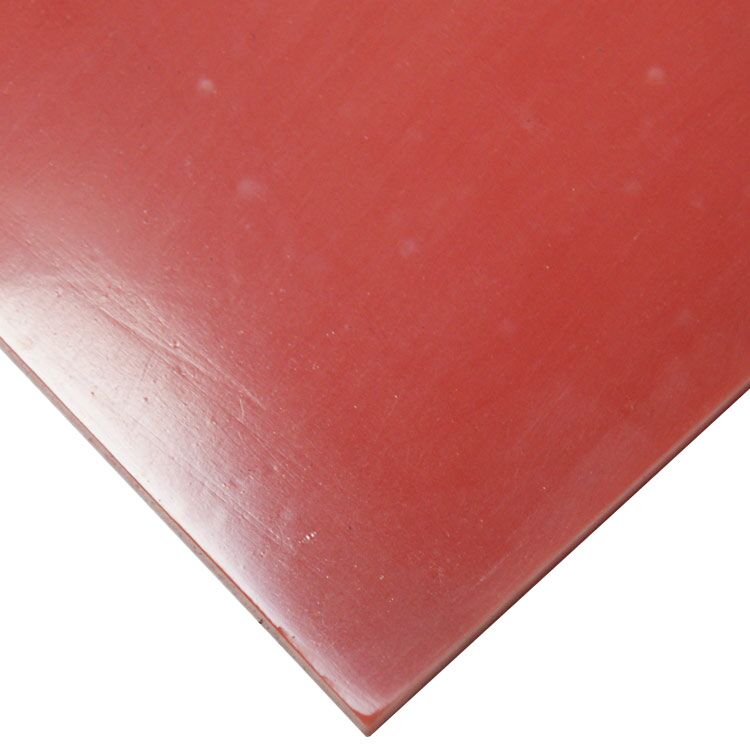

This orange/red silicone elastomer is highly recommended for use in commercial level jobs that involve the presence of extremely high or low temperatures. Silicone 50 Shore A is a popular choice for industrial and commercial high temperature applications. It makes for great gasket material in elevated temperatures. This high temperature sheet material is available in a greater variety of thickness options: 1/32″, 1/16″, 3/32″, 1/8″, 3/16″, 1/4″, 3/8″, 1/2″, 5/8″, and 3/4″! This gives you more options to determine how thick you want or need your silicone parts to be. Featuring an excellent degree of resistance to many chemicals (for a complete Chemical Resistance Guide please consult a customer service representative), this red silicone rubber has an excellent degree of flexibility due to a durometer rating of 50 Shore A.
Unique Body Color: One of the great things about silicone rubber is that it can come in a variety of different colors. This particular type of silicone elastomer has a color that is somewhere between red and orange. The color is useful when you want the silicone parts to be easily identifiable while in use in your application. Keep in mind that this silicone elastomer does have a color variation that can make it appear either more on the reddish side or the orange side of the color spectrum.
High Temperature Sheet Material: This would not be a proper silicone sheet rubber if it were not able to endure harsh temperature conditions. You can expose this red silicone material to temperatures that reach as high as 450 F. At the same time, it is also able to operate in extremely cold temperatures, with a specific minimum temperature limit of -103 F.
50 Durometer Rubber: In order to help people determine how hard and physically durable an elastomer is against physical indentation, sheet rubber is often accompanied by a durometer rating. The higher the rating, the more resistant the body of the rubber will be against physically demanding objects. As this rating goes lower, the rubber becomes more flexible and pliable. A durometer rating of Silicone 50 shore indicates that the rubber is not that hard and is more pliable in nature. That is why we recommend this silicone 50 shore for commercial grade applications where physical properties are not crucial to have.
More Benefits:
- Popular Silicone 50 Shore A
- Resistant to UV rays and ozone
- Exhibits a moderate level of chemical resistance
- Available for custom fabrication into seals and gaskets
- Rolls available in either 25ft or 50ft lengths depending on thickness
- This red silicone sheet rubber is available in a wide variety of thicknesses
Company Reviews
Product Specifications
| Description: | Commercial grade silicone sheeting is used in applications where physical properties are not critical but extreme temperature resistance is necessary. This sheeting makes excellent gasket material, offers both UV and ozone resistance. |
| Compound: | 100% Silicone Sheet |
| Color: | Red / Orange (slight color variation across rolls) |
| Durometer: | 50 Shore A, +/-5 |
| Temperature Range: | -103 F to 450 F |
| Minimum Tensile: | 870 PSI or 6 MPA |
| Finish: | Smooth |
| Minimum Elongation: | 300% |
| Gauges: | 1/32″, 1/16″, 3/32″, 1/8″, 3/16″, 1/4″, 3/8″, 1/2″, 5/8″ and 3/4″ |
| Widths: | 36 inches |
| Roll Length: | 50 feet |
| Chemical Resistance: | Excellent resistance to Fungus, Acetic Acid, Ammonia Gas (hot and cold), Corn Oil, Fish Oil, Lime Sulfur, Methyl Ether, Ozone, Sodium Sulfate, Tartaric Acid, Vinegar, and many more. For Silicone’s compatibility with your specific medium please consult a Rubber-Cal representative. |
| Application: | High-Temperature Gasketing, Laboratory Equipment, Cost-Conscious Materials, Commercial Chemical Resistance. |
| Flexibility: | This elastomer is available in a wide range of durometers (45-55). |
| Custom Cuts: | In addition to hand fabrication, this product can be fabricated using laser, die, and water-jet cutting. Please submit your drawings for a price quote. |
