WARNING: Cancer and Reproductive Harm - Volume Pricing
| Thickness | Width | Weight per Roll | Weight per Linear ft | 5-24 Feet | 25-99 Feet | 100-499 Feet | 500+ Feet |
| 1mm | 36″ or 91.4 cm | 28 lbs | .6 lbs | $10.68 | $7.56 | $6.85 | $5.34 |
| 2mm | 36″ or 91.4 cm | 54 lbs | 1.1 lbs | $19.21 | $13.60 | $12.32 | $9.60 |
| 3mm | 36″ or 91.4 cm | 110 lbs | 2.2 lbs | $36.98 | $26.20 | $23.73 | $18.49 |
| 5mm | 36″ or 91.4 cm | 160 lbs | 3.2 lbs | $46.23 | $32.75 | $29.66 | $23.11 |

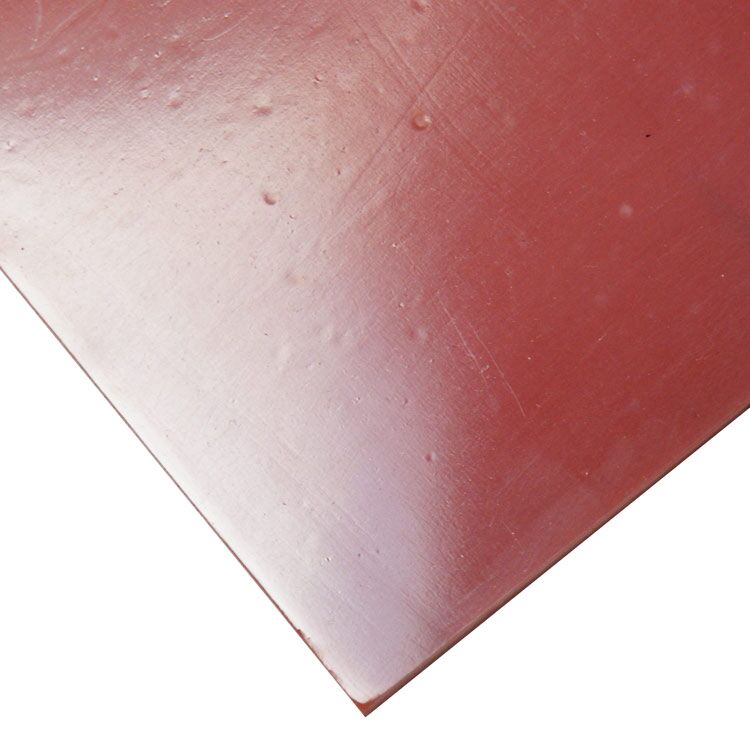

Product Description
This red/orange silicone sheet rubber is slightly different from its counterparts due to the fact that it is offered in metric measurements. It is available in thickness gauges of 1mm, 2mm, 3mm, and 5mm. This commercial grade silicone has metric units of measurement ideal for application that call out non-conventional gauges of a silicone sheet rubber. This commercial grade silicone has the temperature and chemical resistance that makes rubber silicone products valued for use in sensitive high temperature applications. It is possible to cut this rubber sheet for the purposes of making silicone parts like gaskets.
Extreme Temperature Resistance: When you know that your application will definitely involve the presence of very high or very low temperatures, you will want to use this silicone sheet rubber. It can handle conditions that fall anywhere between -103 F and 450 F, making it a very versatile material for hot and cold situations. Most other materials get damaged in such conditions. For example, rubber silicone products will not suffer from any damage to their bodies when exposed to very high heat.
Metric Standards of Measurement: The metric system is used on an international level. This commercial grade silicone rubber is unique because of the metric thickness gauges that it is available in. These sheets come in options of 1mm, 2mm, 3mm, and 5mm. If the regular non-metric version of this sheet rubber is not fulfilling your need, then taking a look at this metric version may provide you with the solution you seek.
Custom Fabrication Available: Making silicone parts like seals and gaskets can be quite a headache for most people. That is why we offer the option to fabricate parts upon request. With a lower durometer rating of 50A, this silicone sheet rubber is fairly easy to cut. We offer hand, die, laser, and waterjet fabrication options. We also encourage you to provide a drawing or blueprint so that our experts can fabricate the exact gasket for your needs.
More Benefits:
- Exhibits moderate levels of chemical resistance
- Low durometer rating makes for a softer sheet material
- Rolls come with a slight color variation ranging from darker to lighter
- Commercial grade silicone is economical and exhibits excellent heat resistant qualities
Company Reviews
Product Specifications
| Description: | Commercial grade silicone sheeting is used in applications where physical properties are not critical but extreme temperature resistance is necessary. This sheeting makes excellent gasket material, offers both UV and ozone resistance. |
| Compound: | 100% Silicone Sheet |
| Color: | Red / Orange (slight color variation across rolls) |
| Durometer: | 50 Shore A, +/-5 |
| Temperature Range: | -103 F to 450 F |
| Minimum Tensile: | 870 PSI or 6 MPA |
| Finish: | Smooth |
| Minimum Elongation: | 300% |
| Gauges: | 1mm, 2mm, 3mm and 5mm |
| Widths: | 36 inches |
| Roll Length: | 50 feet |
| Chemical Resistance: | Excellent resistance to Fungus, Acetic Acid, Ammonia Gas (hot and cold), Corn Oil, Fish Oil, Lime Sulfur, Methyl Ether, Ozone, Sodium Sulfate, Tartaric Acid, Vinegar, and many more. For Silicone’s compatibility with your specific medium please consult a Rubber-Cal representative. |
| Application: | High-Temperature Gasketing, Laboratory Equipment, Cost-Conscious Materials, Commercial Chemical Resistance. |
| Flexibility: | This elastomer is available in a wide range of durometers (45-55). |
| Custom Cuts: | In addition to hand fabrication, this product can be fabricated using laser, die, and water-jet cutting. Please submit your drawings for a price quote. |
